RV10-28C-0-N-35/ RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

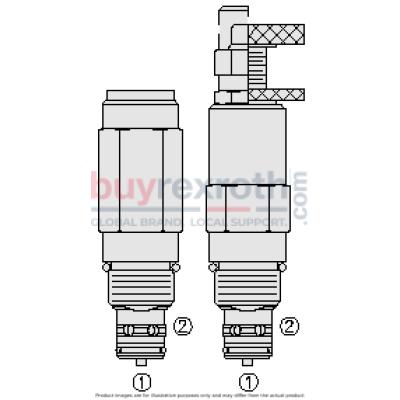

The Hydraforce RV10-28C-0-N-35 (5613702) is a precision-engineered screw-in, cartridge-style, pilot-operated relief valve with an integrated reverse free flow check valve. This device is designed to function as a pressure-limiting component in demanding hydraulic circuits that require rapid response, low hysteresis, minimal leakage, and low-pressure override capabilities. The valve effectively blocks flow from port 1 to port 2 until the pressure at port 1 reaches a sufficient level. It allows for relief flow from port 1 to port 2 and supports reverse flow from port 2 to port 1 when the pressure at port 2 exceeds that at port 1. The RV10-28C-0-N-35 offers various adjustment options and cannot be backed out of the valve, with operation possible in both relief and check valve modes across several pressure ranges. Constructed with a hardened spool and cage for durability, it ensures fast response times in industry-standard sizes. The product's pressure ratings include a maximum of 289.6 bar (4200 psi), proof pressure of 620.5 bar (9000 psi), and burst pressure of 1241.1 bar (18000 psi). It features an adjustable pressure range from 13.8 to 289.6 bar (200 to 4200 psi) with a crack pressure defined at a flow rate of 7.6 lpm (2 gpm). The reseat pressure is nominally set at 90% of the crack pressure, with an approximate increment per adjuster turn of 98.6 bar (1430 psi). In terms of flow capabilities, it supports up to 113.6 lpm (30 gpm) from port 1 to port 2 with maximum internal leakage limited to just under one ml/min. Temperature ratings accommodate operating fluid temperatures ranging from -40\u00b0C to +204\u00b0C depending on seal type used, ensuring versatility across various environments. Installation specifications include compatibility with VC10-2 cavities and specific torque requirements for secure installation without orientation restrictions.
