RV50-28A-0-P-50/ RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

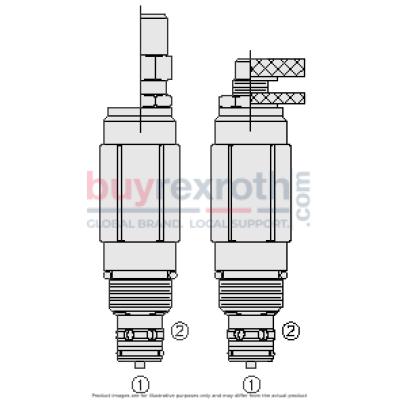

The Hydraforce 5613480P (5613480P) is a screw-in, cartridge-style, pilot-operated relief valve with an integrated reverse free flow check valve. This component is designed to act as a pressure-limiting device in demanding hydraulic circuits, offering features such as fast response, low hysteresis, low leakage, and minimal pressure override. The RV50-28X model blocks flow from port 1 to port 2 until the pressure at port 1 reaches a sufficient level. It allows relief flow from port 1 to port 2 while enabling reverse flow from port 2 to port 1 when the pressure at port 2 exceeds that at port 1. This valve is rated for high operating pressures up to 345 bar (5000 psi) and provides various adjustment options that cannot be backed out of the valve. It can function in both relief valve mode and check valve mode due to its built-in reverse flow check valve. The use of a hardened spool and cage ensures long life and durability under demanding conditions. Additionally, the RV50-28X fits into an industry-common cavity, making it versatile for various applications requiring reliable pressure control and reverse flow capabilities.
