RVD50-20A-8TD-N-50/ RELIEF
Manufacturer: Hydraforce
Material #: 5612585
Model : RVD50-20A-8TD-N-50/ RELIEF
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

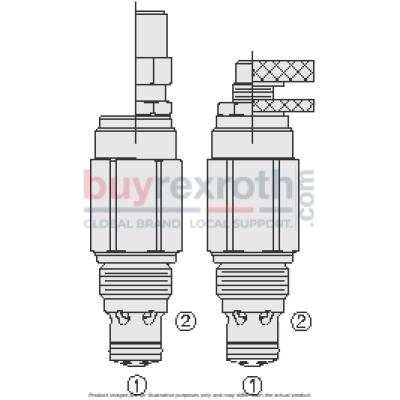

The Hydraforce 5612585 (5612585) is a screw-in, cartridge-style, direct-acting poppet type relief valve designed to serve as a pressure limiting device for hydraulic circuit protection. Known as the XRVd50-20X, this valve effectively blocks flow from port 1 to port 2 until the pressure at port 1 is sufficient to displace the poppet from its seat. It is engineered for rapid response to load changes in circuits that require low hysteresis, minimal pressure rise, and low internal leakage. Key features include adjustments that cannot be backed out of the valve and an adjuster height that remains constant when adjusting the pressure setting. The valve's hardened poppet and cage ensure durability and long service life. Additionally, it offers optional spring ranges up to 345 bar (5000 psi) and fits an industry-common cavity for ease of integration into existing systems.
$143.75 USD
Availability: Backordered
Ships from US Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
Qty:
Delivered as early as January 27, 2027
| Ratings: | Pressure Ratings Pressure rating: 413.7 bar (6000 psi) Proof pressure: 785.4 bar (11000 psi) Burst pressure: 1515.8 bar (22000 psi) Crack pressure defined: Pressure evident at 0.95 lpm (0.25 gpm) Reseat pressure: Nominal 85% of crack pressure 1 ml/min (20 drops/min) Flow Ratings Flow rating: 113.6 lpm (30 gpm) Port 1 to 2 at max pressure Maximum internal leakage: 0.25 ml/min (5 drops/min) To 80% of nominal Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals -54 to 107 °C (-65 to 225 °F) With urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (grvd50-20x) |
| Operating Parameters: | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 63.7 to 71.9 N-m (47 to 53 ft-lb) Orientation restriction: None |
| Order Code: | POSITION CODE DESCRIPTION RVD50-20F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes F P PED 2014/68/EC H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J NC Buna-N for Crossover Applications J V Fluorocarbon J HV High Durometer Fluorocarbon J VC Fluorocarbon for Crossover Applications J P Polyurethane J U PPDI Urethane R Spring R 08 13.7 to 58.6 bar (200 to 850 psi) Spring Range R 15 41.4 to 103.4 bar (600 to 1500 psi) Spring Range R 24 96.5 to 165.5 bar (1400 to 2400 psi) Spring Range R 32 137.9 to 220.6 bar (2000 to 3200 psi) Spring Range R 42 206.8 to 289.6 bar (3000 to 4200 psi) Spring Range R 50 275.8 to 350 bar (4000 to 5075 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
