Manufacturer: Hydraforce
Material #: 5612540M310

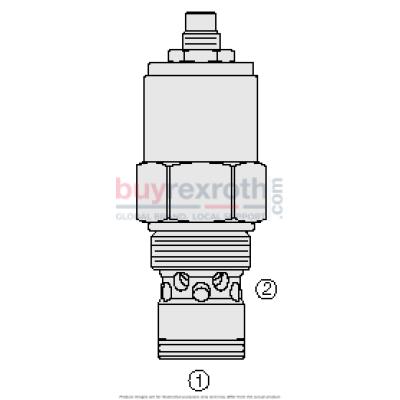

Model : RVCV56-20A-0-N-61/M310 RELIEF VALVE
$126.00 USD
More are expected on September 29, 2026
Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.| Qty | Price | Savings |
|---|---|---|
| 5-10 | $123.48 USD | $2.52 USD |
| 11+ | $122.22 USD | $3.78 USD |
Status: This product is temporarily out of stock.
Qty: Delivered as early as September 29, 2026 when ordered in
| Ratings: | Pressure Ratings Pressure rating: 420.6 bar (6100 psi) Port 1 68.9 bar (1000 psi) Port 2 Proof pressure: 482.6 bar (7000 psi) Burst pressure: 965.3 bar (14000 psi) Overshoot: Less than 20% of setting Adjustable pressure range: 137.9 to 420.6 bar (2000 to 6100 psi) Port 1 to 2 Crack pressure defined: Pressure evident at 0.95 lpm (0.25 gpm) Reseat pressure: Port 1 to port 2 85% of crack maximum Crack pressure: 0.34 bar (5 psi) Flow Ratings Flow rating: 113.6 lpm (30 gpm) Port 1 to 2 174.1 lpm (46 gpm) Port 2 to 1 Maximum internal leakage: 0.53 ml/min (10 drops/min) Port 2 at 103.4 bar (1500 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With viton seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters: | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC16-2 variation 'a' (recommended for higher flows) 16-size-2-way Cavities Cartridge installation torque: 199 to 207.4 N-m (147 to 153 ft-lb) Orientation restriction: None |
| Order Code: | POSITION CODE DESCRIPTION RVCV56-20F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 12T Aluminum SAE 12 H 16T Aluminum SAE 16 H 12TD Ductile Iron SAE 12 H 16TD Ductile Iron SAE 16 H 6B Aluminum BSPP 3/4" (6) H 8B Aluminum BSPP 1" (8) H 8BD Ductile Iron BSPP 1" (8) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane R Spring R 30 137.9 to 206.8 bar (2000 to 3000 psi) Spring Range R 45 213.7 to 310.3 bar (3100 to 4500 psi) Spring Range R 61 317.2 to 420.6 bar (4600 to 6100 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
