RV10-22H-0-N-35/32 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

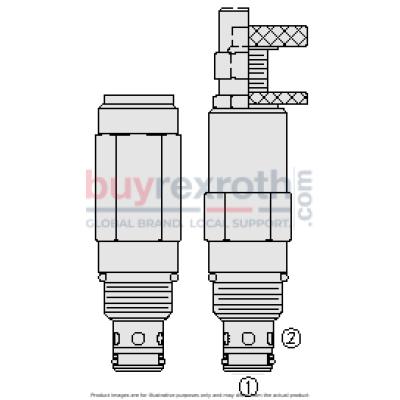

The Hydraforce RV10-22H-0-N-35/32 (5611403.32) is a screw-in, cartridge-style hydraulic relief valve designed for demanding hydraulic circuits that require low hysteresis and minimal internal leakage. This direct-acting, differential area, poppet-type valve functions as a pressure-limiting device by blocking flow from port 2 to port 1 until the pressure at port 2 is sufficient to move the poppet from its seat. It ensures smooth transitions in response to load changes within common hydraulic systems. The valve features a hardened poppet and cage for extended durability and offers optional spring ranges up to 241 bar (3500 psi), with rapid responses to pressure surges. The RV10-22H model has specific pressure ratings: a maximum pressure rating of 241.3 bar (3500 psi), proof pressure of 482.6 bar (7000 psi), and burst pressure of 965.3 bar (14000 psi). Its flow rating is up to 113.6 lpm (30 gpm), with a maximum internal leakage of five drops per minute at up to 85% of its nominal setting. Temperature ratings vary based on seal material: -40 to 100 \u00b0C (-40 to 212 \u00b0F) with Buna N seals, -26 to 204 \u00b0C (-15 to 400 \u00b0F) with fluorocarbon seals, and -54 to 107 \u00b0C (-65 to 225 \u00b0F) with polyurethane seals. The valve can handle fluids with viscosities ranging from 7.4 to 420 cSt and operates at contamination levels up to ISO code 18/16/13. Weighing approximately 0.222 kg (0.49 lb), the RV10-22H has an internal wetted surface area of about 126 cm\u00b2 (19.5 in\u00b2) and fits into VC10-2 cavities requiring installation torques between 33.9 and 36.7 N-m (25 to 27 ft-lb). The H-style plug adjuster cap requires torque between 32.5 and 35.3 N-m (24 to 26 ft-lb). Optional seal kits are available for various operational needs, including bidirectional functionality.
