RV10-22C-0-N-06/M19.5 RELIEF VALVE
Manufacturer: Hydraforce
Material #: 5611200M195
Model : RV10-22C-0-N-06/M19.5 RELIEF VALVE
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

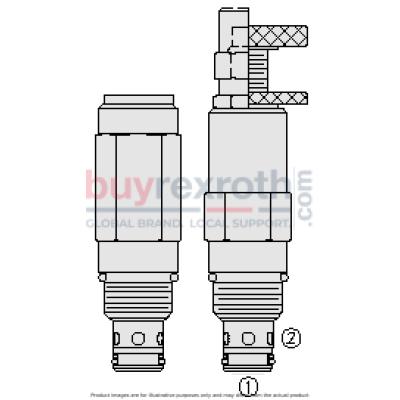

The Hydraforce 5611200.M19.5 (5611200.M19.5) is a screw-in, cartridge-style hydraulic relief valve designed for pressure limiting in challenging hydraulic circuits. This direct-acting, differential area, poppet-type valve excels in applications requiring low hysteresis and minimal internal leakage. It operates by blocking flow from port 2 to port 1 until the pressure at port 2 is sufficient to unseat the poppet, ensuring a smooth transition in response to varying loads within standard hydraulic systems. Key features include non-backable adjustments with positive stops that prevent springs from going solid, and a hardened poppet and cage for extended durability. The valve offers optional spring ranges up to 241 bar (3500 psi) and is known for its rapid response to pressure surges. Its industry-common size makes it versatile and suitable for integration into various hydraulic setups.
$48.75 USD
Availability: Backordered
Ships from US Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
Qty:
Delivered as early as March 8, 2027
| Ratings: | Pressure Ratings Pressure rating: 241.3 bar (3500 psi) Proof pressure: 482.6 bar (7000 psi) Burst pressure: 965.3 bar (14000 psi) Relief pressure defined: Pressure evident at 0.95 lpm (0.25 gpm) Flow Ratings Flow rating: 113.6 lpm (30 gpm) Maximum internal leakage: 5 drops/min To 85% of nominal setting Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: GRV10-22X 960 hr salt spray per ASTM b117 |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 33.9 to 36.7 N-m (25 to 27 ft-lb) 66.7 N-m (50 ft-lb) Maximum allowable Adjuster cap torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) H-style plug Orientation restriction: None |
| Order Code: | POSITION CODE DESCRIPTION RV10-22F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J NC Buna-N for Crossover Applications J V Fluorocarbon J VC Fluorocarbon for Crossover Applications J P Polyurethane J PC Polyurethane for Crossover Applications J U PPDI Urethane R Spring R 06 6.9 to 41.5 bar (100 to 600 psi) Spring Range R 13 10.3 to 89.6 bar (150 to 1300 psi) Spring Range R 25 17.2 to 172.4 bar (250 to 2500 psi) Spring Range R 35 20.7 to 241.3 bar (300 to 3500 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
