HSP12-20T-0-U-00 SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

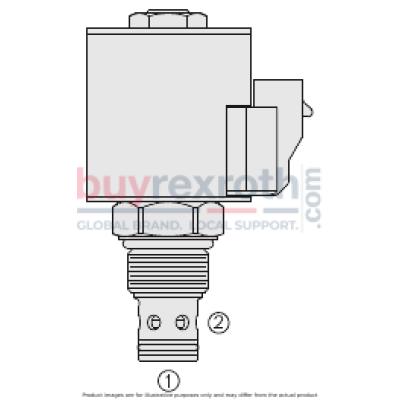

The Hydraforce 5544003 (5544003) is a high-performance hydraulic cartridge valve, specifically designed for demanding load holding applications requiring low leakage. This 2-way, piloted, poppet-type, proportional, normally closed screw-in valve excels in its ability to block flow from port 2 to port 1 when de-energized. It permits flow in the reverse direction only after overcoming spring forces. Upon energization, the valve allows flow proportional to the applied current from port 2 to port 1 while significantly restricting flow in the opposite direction. This feature ensures precise control and efficiency in hydraulic systems. Additionally, the model includes a manual override operation which is crucial for emergency scenarios. The manual override button needs to be fully rotated clockwise for normal de-energized operation and counterclockwise for manual shifting of the valve. However, this feature is recommended for emergency use only and not suited for continuous-duty operations. The construction of the valve incorporates a continuous-duty rated coil and efficient wet-armature design that enhance its durability and performance reliability. It also boasts waterproof E-Coils that are rated up to IP69K, ensuring protection against ingress of dust and high-temperature high-pressure water jets. Linear metering options are available for precise control adjustments. All HyPerformance products including this model adhere strictly to NFPA specification T2.6.1., with testing conducted at a verification level of 90% and an assurance level of 99%, guaranteeing high standards of quality and performance consistency across varied applications.
