HSV12-23-0-N-0 SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

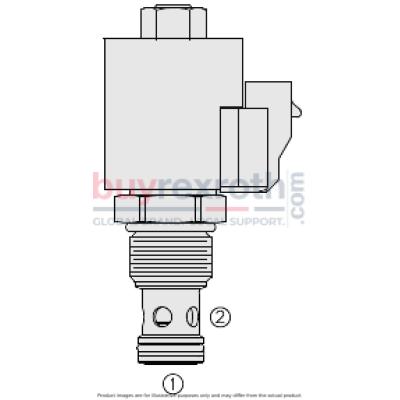

The Hydraforce 5541029N (5541029N) is a sophisticated hydraulic cartridge valve, specifically the HSV1223X model, designed for high-pressure applications requiring reliable load holding with minimal leakage. This 2-way, piloted, poppet-type valve is normally open and facilitates bidirectional flow when de-energized. Upon energization, the poppet closes firmly against its seat to block flow between ports 2-1 while permitting flow from ports 1-2 after certain forces are overcome, as detailed in the performance graph provided with the unit. A notable feature of this valve is its manual override capability which allows temporary manual operation by pressing and holding a button or knob. This function is particularly useful for emergency situations but is not intended for regular operation. The HSV1223X includes several advanced features enhancing its performance and durability: It has a hardened seat to extend service life and reduce leakage, optional coil voltages and terminations for flexibility in application, and efficient wet-armature construction. Additionally, it comes with interchangeable cartridges across different voltages. The unit's solenoid is continuous-duty rated, ensuring reliable operation even under extended use. For environmental resilience, the waterproof E-Coils are rated up to IP69K, and the valve features corrosion-resistant plating for added longevity in harsh conditions. The design also incorporates a unitized, molded coil design which contributes to both robustness and cost-effectiveness of the cavity where it is installed. All HyPerformance products including this model adhere strictly to NFPA specification T2.6.1., undergoing rigorous testing to ensure a verification level of 90% and an assurance level of 99%, guaranteeing high reliability and performance consistency in demanding hydraulic applications.
