HSV10-22-0-U-12EL SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

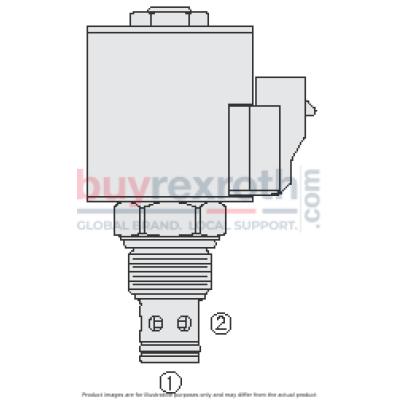

The Hydraforce 5520023 (5520023) is a high-performance hydraulic cartridge valve designed for efficient and reliable operation in load holding applications. The model, known as HSV1022X, is a 2-way, piloted, poppet-type, normally closed screw-in valve that offers exceptional control over fluid flow in hydraulic systems. It features a hardened seat to ensure longevity and minimal leakage, crucial for maintaining system integrity and performance. This valve operates by blocking flow from ports 2 to 1 when de-energized, only allowing reverse flow from ports 1 to 2 once sufficient spring force is overcome. Upon energization, the HSV1022X permits bidirectional flow which enhances versatility in various hydraulic setups. An integral part of its design is the manual override function which provides emergency operation capability; by pushing down and rotating the knob or pulling on it for increased flow. However, this feature is recommended for emergency situations rather than continuous use. Noteworthy attributes include a continuous-duty rated coil and efficient wet-armature construction that contribute to its robust performance even under demanding conditions. The unit also boasts optional coil voltages and terminations to accommodate different system requirements. For resilience against environmental factors, the waterproof E-Coils are rated up to IP69K with solenoid tubes and coils that withstand up to 960 hours of salt spray exposure. Each cartridge is voltage interchangeable which simplifies maintenance and replacement processes. Additionally, all HyPerformance products including this model adhere strictly to NFPA specification T2.6.1., ensuring reliability with a verification level of 90% and assurance level of 99%. This makes the Hydraforce HSV1022X an ideal choice for applications requiring precise hydraulic control with assured durability and minimal leakage.
