HSV10-22-0-N-00 SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

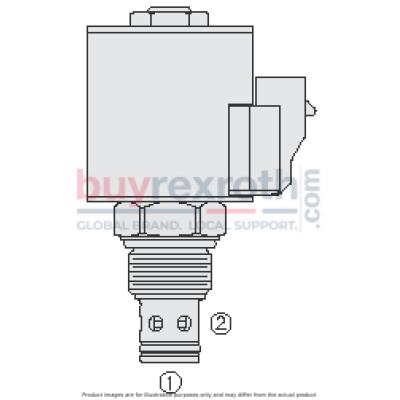

The Hydraforce HSV10-22-0-N-00 (5520004N) is a high-performance hydraulic cartridge valve designed for applications requiring low leakage and reliable load holding. This 2-way, piloted, poppet-type, normally closed screw-in valve is ideal for blocking flow from port 2 to port 1 when de-energized, and allows bidirectional flow when energized. The valve features a manual override for emergency situations, which should not be used for continuous-duty operations. Constructed with a hardened seat to ensure longevity and minimal leakage, the HSV10-22-0-N-00 can handle pressures up to 350 bar (5075 psi) operationally and up to 690 bar (10000 psi) proof pressure, with burst pressure ratings reaching 1380 bar (20000 psi). It supports flow rates up to 75.5 lpm (20 gpm) and exhibits maximum internal leakage of only five drops per minute under specific conditions. This valve is also equipped with continuous-duty rated coils that are waterproof up to IP69K standards and can withstand a 960-hour salt spray test, ensuring durability in harsh environments. The operational fluid temperature ranges from -40°C to +100°C (-40°F to +212°F), depending on the seal material used—options include Buna N, fluorocarbon, and urethane. It accommodates a wide range of fluid viscosities from 7.4 to 420 cSt and maintains performance within contamination levels specified by ISO 4406. Additional accessories such as various seal kits and housings are available to ensure compatibility with diverse systems. This versatility makes the Hydraforce HSV10-22-0-N-00 an excellent choice for various hydraulic applications requiring precise control and dependable performance.
