HSP10-20A-0-U-24ER SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

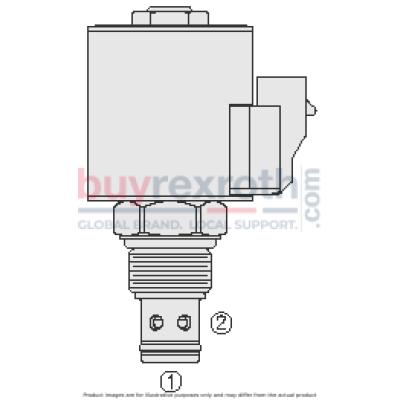

The Hydraforce 5503578 (5503578) is a high-performance hydraulic cartridge valve designed for precise control in hydraulic systems. This 2-way, piloted, poppet-type, proportional, normally closed screw-in valve is crafted to ensure low leakage and reliable blocking in load-holding applications. It operates by blocking flow from ports 2 to 1 when de-energized, and allows flow proportional to the applied current from ports 2 to 1 when energized. The valve also restricts flow from ports 1 to 2 during energization, adhering to its design for efficient operation under varying conditions. The model features a manual override option which allows for manual shifting of the valve in emergency situations or when electrical control is not available. The manual override can be engaged by either pushing down on the knob and rotating it (option 'm'), or by fully rotating the button counterclockwise (option 't'). This feature enhances the flexibility and safety of operations. Constructed with continuous-duty rated coils and efficient wet-armature construction, the valve is robust and suitable for demanding environments. Its waterproof E-Coils are rated up to IP69K, ensuring protection against ingress of dust and high temperature high-pressure water jets. Furthermore, all HyPerformance products including this model are rigorously tested to NFPA specification T2.6.1., with a verification level of 90% and an assurance level of 99%, highlighting their reliability and performance standards in industrial applications.
