HSP10-20A-0-U-00 SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

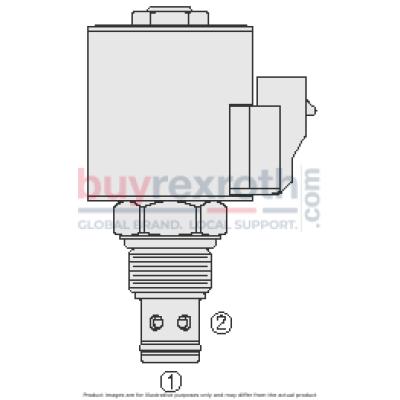

The Hydraforce HSP10-20A-0-U-00 (5503566) is a high-performance, proportional cartridge valve designed for hydraulic applications requiring low leakage and load-holding capabilities. This 2-way, piloted, poppet-type, normally closed screw-in hydraulic cartridge valve offers precise control by blocking flow from ports 2 to 1 when de-energized and allowing proportional flow from ports 2 to 1 when energized, based on the applied current. The valve's design ensures severe restriction of flow from ports 1 to 2 during operation. The HSP10-20A-0-U-00 features efficient wet-armature construction and is equipped with waterproof E-Coils rated up to IP69K, ensuring durability and reliability in harsh environments. It includes manual override options that are intended for emergency use, enhancing its versatility in field operations. The valve is capable of handling high-pressure applications with a pressure rating up to 350 bar (5075 psi) and a burst pressure of 1380 bar (20000 psi). For performance consistency, the valve supports fluid temperatures ranging from -40°C to +100°C with Buna N seals and can handle various hydraulic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt. Its robust design allows for a cycle life of one million cycles, making it suitable for demanding applications. In terms of installation flexibility, the HSP10-20A-0-U-00 does not have orientation restrictions and can be installed in standard HVC102 cavities using specified torque settings for different materials like steel/ductile iron or aluminum. This model's adaptability is further enhanced by compatibility with multiple seal options including Buna N, fluorocarbon, and urethane, catering to different environmental conditions and operational requirements.
