HCV10-20-0-N-15 CHECK VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

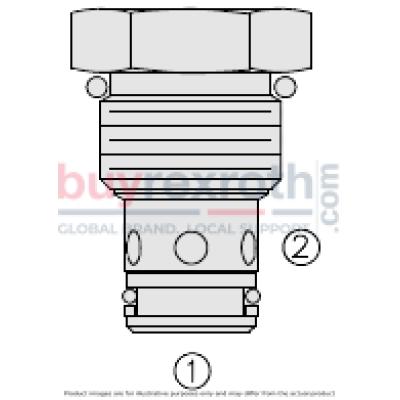

The Hydraforce 5501007N (5501007N) is a high-quality hydraulic check valve, specifically the CV1020X model, designed for use in various hydraulic systems. This screw-in, cartridge-style valve functions primarily as a blocking or load-holding device. It facilitates the flow from port 1 to port 2 and normally blocks the flow in the opposite direction. The operation of the CV1020X is supported by a fully guided check which remains spring-biased closed until there is sufficient pressure at port 1 to open towards port 2. This model features a hardened seat that ensures long life and minimal leakage, enhancing system reliability. The CV1020X also offers optional bias springs which provide flexibility for backpressure applications, making it adaptable for different hydraulic needs. A notable option includes a 300 psi bias spring with a tall cap, allowing for customization based on specific operational requirements. Additionally, its industry-common cavity design ensures compatibility with standard hydraulic systems, simplifying installation and maintenance procedures. With these capabilities, the Hydraforce 5501007N serves as an essential component in ensuring efficient and secure hydraulic operations.
