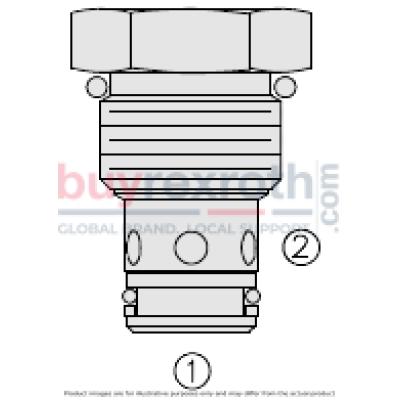

The Hydraforce HCV10-20-0-U-05 (5501005) is a high-performance hydraulic check valve designed for robust and efficient operation in demanding hydraulic systems. This screw-in, cartridge-style valve facilitates the flow of hydraulic fluid from port 1 to port 2, while effectively blocking flow in the reverse direction. It features a fully guided poppet that remains spring-biased closed until sufficient pressure is applied at port 1, facilitating reliable operation and preventing backflow. Constructed with a hardened seat, the HCV10-20-0-U-05 ensures long life and minimal leakage, crucial for maintaining system integrity and performance. It supports various bias spring options, enhancing application flexibility under different backpressure conditions. The valve is capable of handling high pressures up to 420 bar (6090 psi) and burst pressures up to 1380 bar (20000 psi), making it suitable for high-pressure applications. Flow-wise, the valve allows up to 76 liters per minute (20 gallons per minute), with maximum internal leakage maintained at a minimal rate. This check valve operates effectively within a temperature range from -40°C to +100°C (-40°F to +212°F) with standard seals, ensuring reliability across a wide range of operating environments. The HCV10-20-0-U-05 fits into industry-common cavity HVC102 and can be installed without orientation restrictions, offering flexibility in system design. Optional accessories include various seal kits such as Buna N, Fluorocarbon, and Urethane options ensuring compatibility with different fluids and further operational customization. This model’s robust construction coupled with versatile configuration options makes it an excellent choice for load-holding applications where precision and reliability are paramount.
