HCV10-20-0-U-200 CHECK VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

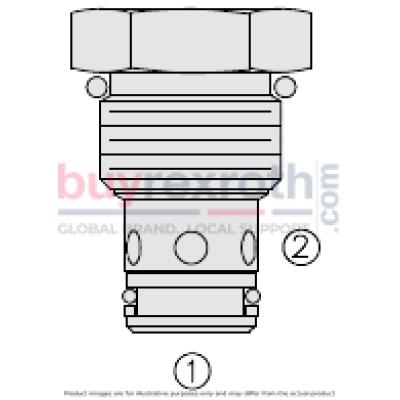

The Hydraforce 5501004 (5501004) is a CV1020X model hydraulic check valve, designed as a screw-in, cartridge style component primarily used for blocking or load-holding in hydraulic systems. This valve facilitates the flow of oil from port 1 to port 2, while typically preventing flow in the reverse direction. It incorporates a fully guided check mechanism that remains spring-biased closed until sufficient pressure is exerted at port 1 to facilitate opening towards port 2. Notably, the CV1020X features a hardened seat to ensure durability and minimal leakage over extended use. It also offers optional bias springs which provide adaptability for backpressure applications, enhancing its utility across various hydraulic setups. Additionally, a 300 psi bias spring option can be selected with a tall cap to accommodate specific system requirements. The design of the CV1020X includes an industry-common cavity which aids in standardization and interchangeability within hydraulic systems.
