HPC08-30-0-U-140 CHECK VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

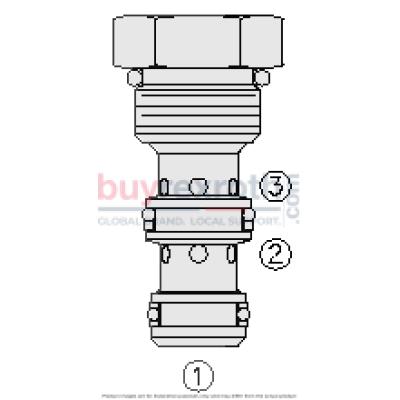

The Hydraforce 5500105 (5500105) is a high-performance hydraulic check valve, specifically designed for blocking or load-holding applications in high-pressure systems. Known as the HPC0830, this valve operates by allowing free flow from port 2 to port 3 and normally blocks flow in the reverse direction. It features a pilot-operated mechanism which permits flow from port 3 to port 2 when the pressure at port 1 exceeds one-third of the pressure at port 3. Constructed with a hardened seat, the HPC0830 ensures long life and minimal leakage, making it highly reliable for critical applications. It also offers optional features such as a sealed piston and variable spring ranges, which enhance its adaptability to different system requirements. Its compact size facilitates easy integration into various hydraulic circuits without requiring extensive space. Each unit of the HPC0830 undergoes rigorous testing according to NFPA specification T2.6.1, ensuring that all HyPerformance valves meet high standards of performance and reliability. The testing protocol includes a verification level of 90% and an assurance level of 99%, guaranteeing that each valve performs optimally under specified conditions. This makes the HPC0830 an ideal choice for professionals seeking robust solutions for managing flow in hydraulic systems under high pressure.
