HP10-21B-6T-V-B HAND PUMP
Manufacturer: Hydraforce
Material #: 5470244
Model : HP10-21B-6T-V-B HAND PUMP
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5470244 (5470244) is a meticulously designed hp1021a hand pump, characterized by its dual built-in checks and push-to-pressurize functionality. This device is a screw-in, cartridge type hand pump optimized for use with general purpose hydraulic oils, enhancing its versatility and application in various settings. Notably, the hand pump features a beam that rotates around the vertical axis, allowing for 360-degree handle positioning which provides exceptional maneuverability and user comfort. Moreover, the Hydraforce 5470244 can serve as an essential emergency tool during electrical power failures, ensuring continuous operation in critical situations. Its robust construction and reliable performance make it a valuable asset for maintaining hydraulic systems efficiently.
$153.25 USD
Availability: Backordered
Ships from US
Qty:
Delivered as early as October 26, 2026
| Ratings: | Pressure Ratings Pressure rating: 207 bar (3000 psi) Suction pressure: 193 mm-Hg (7.6 in-Hg) Less than atmospheric pressure Flow Ratings Maximum internal leakage: 0.25 ml/min (5 drops/min) From port 2 to the inside of the pump. Maximum at 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 120 °C (-40 to 248 °F) |
| Performance: |  |
| Installation Specifications: | Cavity: 10-size-2-way Cavities Maximum allowable torque: 305 N-m (225 ft-lb) |

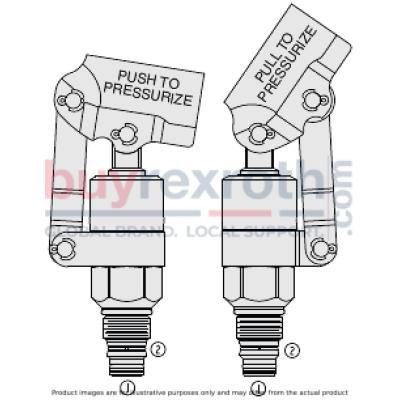

| Order Code: | POSITION CODE DESCRIPTION HP10-21F-H-J-R F Actuation Option F A Push to Pressurize F B Pull to Pressurize H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Displacement Option R A 0.45 in3 (7.4 ml) per Stroke R B 0.65 in3 (10.6 ml) per Stroke |
