FD52-45-0-N-82 FLOW DIVIDER
Manufacturer: Hydraforce
Material #: 5436482
Model : FD52-45-0-N-82 FLOW DIVIDER
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

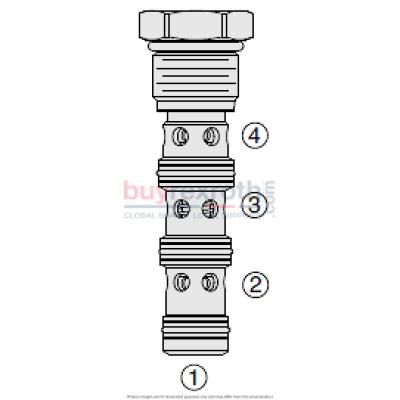

The Hydraforce 5436482 (5436482) is a screw-in cartridge, spool type flow divider/combiner valve, designated as the FD5245. This valve is engineered to perform pressure-compensated proportional division of inlet flow or combining of two return flows, irrespective of the system's operating pressure conditions. It ensures synchronization of flow both in dividing and combining modes. The design incorporates hardened parts that enhance durability and extend the lifespan of the valve. Additionally, it features a quiet, modulated response which optimizes system performance while minimizing noise. The FD5245 operates effectively across a wide range of flows, making it versatile for various applications. Its floating cage allows for high installation torque and it conforms to an industry-common cavity, facilitating ease of integration into existing systems without the need for extensive modifications.
$100.00 USD
Availability: Backordered
Ships from US Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
Qty:
Delivered as early as December 16, 2026
| Ratings: | Pressure Ratings Pressure rating: 345 bar (5000 psi) 420 bar (6090 psi) 10% duty cycle Pressure drop: 20.5 bar (300 psi) At maximum inlet flow Flow Ratings Inlet flow rating: 15 to 60 lpm (4.0 to 16.0 gpm) Model code 44 23 to 90 lpm (6.0 to 24.0 gpm) Model code 66 30 to 106 lpm (8.0 to 28.0 gpm) Model code 88 Synchronizing flow: Approximately 10% of maximum inlet flow Flow accuracy: 10 % Of inlet flow for -44 and -66 models 15 % Of inlet flow for -88 models Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (model number - gfd52-45) |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC12-4 HVC12-4 for applications with pressure excursions up to 420 bar (6090 psi) 12-size-4-way Cavities Cartridge installation torque: 99 to 104 N-m (73 to 77 ft-lb) 156 to 169 N-m (115 to 125 ft-lb) For applications with pressure excursions up to applications with pressure excursions up to 6090 psi [420 bar] Orientation restriction: None |
| Order Code: | POSITION CODE DESCRIPTION FD52-45-H-J-N H Line Body H 0 No Body H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 12TD Ductile Iron SAE 12 J Seal J N Buna-N J V Fluorocarbon J P Polyurethane N Flow Dividing/Combining N 22 Not listed in outline N 33 Not listed in outline N 44 50/50 Rated at 15.0-60.0 lpm (6.0-24.0 gpm) N 55 Not listed in outline N 66 50/50 Rated at 23.0-90.0 lpm (6.0-24.0 gpm) N 88 50/50 Rated at 30.0-106.0 lpm (8.0-28.0 gpm) |
