FD52-45-0-N-66 FLOW DIVIDER

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

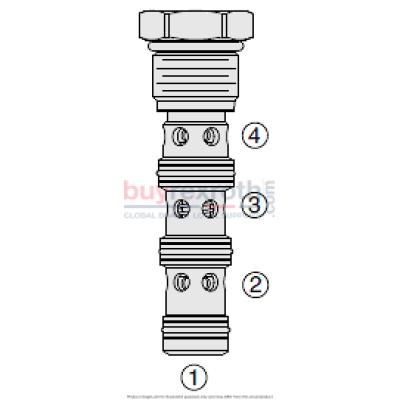

The Hydraforce FD52-45-0-N-66 (5436466) is a highly efficient screw-in cartridge, spool-type flow divider/combiner valve, designed for sophisticated hydraulic systems. This valve excels in both dividing inlet flow into two equal or proportionate parts and combining two return flows into a single stream, ensuring operational consistency regardless of varying system pressures. The pressure-compensated feature of this model guarantees precise flow division and combination, providing synchronizing capabilities that are crucial for applications requiring simultaneous operations. The FD52-45-0-N-66 is built with hardened parts to enhance durability and offers a quiet, modulated response to changes in flow or pressure. It supports a wide operating flow range from 23 to 90 liters per minute (approximately 6.0 to 24.0 gallons per minute), making it versatile for different hydraulic needs. Its design includes a floating cage which allows for high installation torque and ensures compatibility with industry-common cavity VC124 or HVC124 for higher pressure applications up to 6090 psi. This model is engineered to handle fluid temperatures ranging from -40°C to +100°C with standard seals, making it suitable for diverse operating environments. Additionally, the valve maintains high corrosion resistance with a 960-hour salt spray protection as per ASTM B117 standards. The internal wetted surface area measures approximately 238 cm², allowing for efficient fluid dynamics within the system. With its robust construction and advanced capabilities, the Hydraforce FD52-45-0-N-66 is an ideal choice for hydraulic systems requiring reliable flow management under various conditions without orientation restrictions during installation.
