FR12-23A-0-N-/10.00 FLOW CONTROL

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

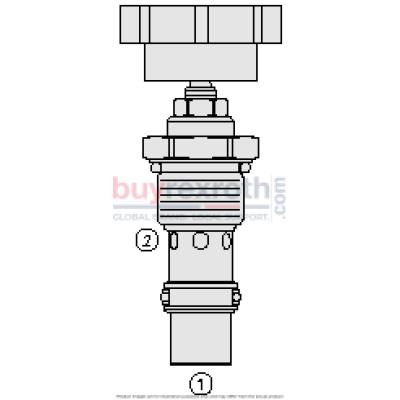

The Hydraforce FR12-23A-0-N-/10.00 (5423401.10.00) is a high-performance adjustable pressure compensated flow regulator valve cartridge designed for precise fluid control in hydraulic systems. This model is a screw-in, restrictive type with a reverse flow check, ensuring that it maintains a preset flow rate from port 2 regardless of pressure variations in the circuit. It operates by increasing the valve opening from fully closed to fully open with a counterclockwise adjustment rotation. This valve cartridge is capable of handling pressures up to 3500 psi, with a proof pressure of 500 psi and a burst pressure of 13000 psi. It supports flow rates up to 20 gallons per minute and exhibits maximum internal leakage of just 0.03 gpm when fully closed. The FR12-23A-0-N-/10.00 is compatible with mineral-based or synthetic hydraulic fluids with lubricating properties and accommodates fluid viscosity ranging from 7.4 to 420 cSt. Designed for durability and quiet operation, the valve features hardened parts for extended life and a modulated response that minimizes system shocks and noise. The operating temperature range varies depending on the seal material, supporting up to 212°F with Buna N seals, up to 400°F with Viton seals, and up to 225°F with polyurethane seals. The FR12-23A-0-N-/10.00's compact design includes an internal wetted surface area of approximately 31.64 square inches and weighs between 0.48 to 0.55 lbs depending on the specific configuration (FR1223A/E/C/blank). Installation specifications include a VC122B cavity type suitable for standard-sized cavities without orientation restrictions, ensuring flexible installation options across various applications.
