FR12-20F-12T-N-/ 7.50 FLOW REG.
Manufacturer: Hydraforce
Material #: 5422390750
Model : FR12-20F-12T-N-/ 7.50 FLOW REG.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

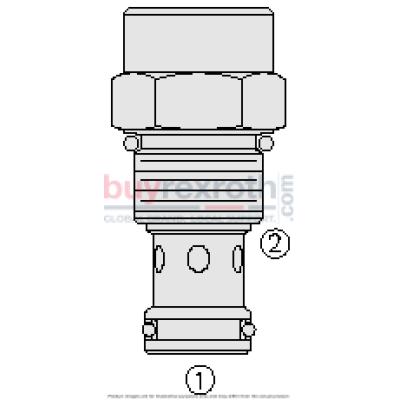

The Hydraforce 5422390.7.50 (5422390.7.50) is a screw-in, cartridge style, fixed orifice, pressure compensated hydraulic flow regulator valve of the restrictive type. This model is designed to maintain a constant flow rate from port 1 to port 2 irrespective of load pressure changes, ensuring efficient operation across various applications. Reverse flow in this valve returns through the control orifice and remains non-compensated. Key features include hardened parts that enhance durability and longevity, a modulated response that operates quietly, and a cost-effective cavity design that contributes to overall value in its usage. This makes the Hydraforce 5422390.7.50 an ideal component in systems requiring reliable flow regulation under varying pressure conditions.
$126.50 USD
Availability: Backordered
Ships from US Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
Qty:
Delivered as early as February 8, 2027
| Ratings: | Pressure Ratings Pressure rating: 240 bar (3500 psi) Flow Ratings Flow rating: 4.0 to 55 lpm (1.0 to 14.5 gpm) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC12-2 12-size-2-way Cavities Cartridge installation torque: 45 to 50 N-m (33 to 37 ft-lb) Maximum allowable torque: 68 N-m (50 ft-lb) Orientation restriction: None |
| Order Code: | POSITION CODE DESCRIPTION FR12-20F-H-J-/T F Adjustment Option F F Factory Preset Non-Adjustable H Line Body H 0 No Body H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 16T Aluminum SAE 16 H 12TD Ductile Iron SAE 12 H 16TD Ductile Iron SAE 16 H 8B Aluminum BSPP 1" (8) H 8BD Ductile Iron BSPP 1" (8) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane T Flow setting T XX Flow setting |
