Manufacturer: Hydraforce
Material #: 5402300
Model : FR08-20F-0-N-/ PLANNING BILL
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

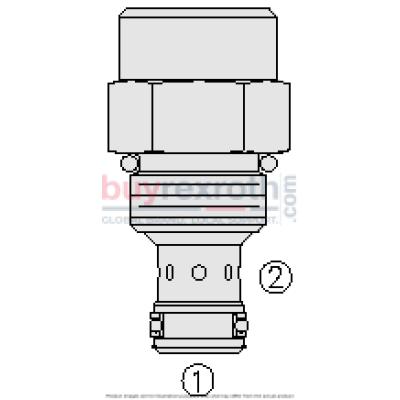

The Hydraforce 5402300 (5402300) is a screw-in, cartridge-style hydraulic flow regulator valve, specifically designed as a fixed orifice, pressure compensated unit. This model, known for its robust and efficient operation, ensures a consistent flow rate from port 1 to port 2 regardless of changes in load pressure. The FR0820F model facilitates reverse flow through the control orifice; however, this reverse flow is non-compensated. Distinguished by its hardened components, the valve promises extended durability and reliable performance under varying operational conditions. Additionally, it features a quiet and modulated response to system changes and is designed to fit compactly within an industry-common cavity, making it an ideal choice for streamlined hydraulic systems requiring precise flow regulation.
$39.50 USD
More are expected on August 31, 2026
Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.| Qty | Price | Savings |
|---|---|---|
| 5-10 | $38.71 USD | $0.79 USD |
| 11+ | $38.31 USD | $1.19 USD |
Status: This product is temporarily out of stock.
Qty: Delivered as early as August 31, 2026 when ordered in
| Ratings: | Pressure Ratings Pressure rating: 240 bar (3500 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 896 bar (13000 psi) Flow Ratings Flow rating: 0.2 to 7.5 lpm (0.05 to 2.0 gpm) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane and urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (GFR08-20F) |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC08-2 08-size-2-way Cavities Cartridge installation torque: 24 to 27 N-m (18 to 20 ft-lb) Maximum allowable torque: 47.5 N-m (35 ft-lb) Orientation restriction: None |
| Order Code: | POSITION CODE DESCRIPTION FR08-20F-H-J-/T F Adjustment Option F F Factory Preset Non-Adjustable H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane T Flow setting T XX Flow setting |
