FR12-20F-0-V-/ M35 FLOW REGULATOR

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

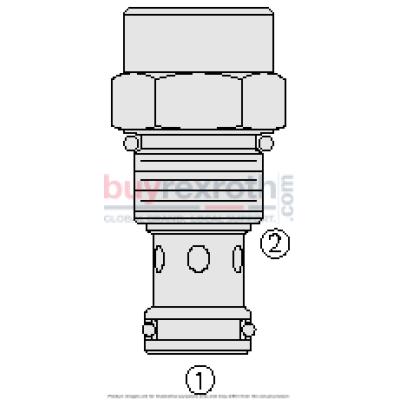

The Hydraforce FR12-20F-0-V-/M35 (5422300V.M35) is a screw-in, cartridge-style hydraulic flow regulator valve, specifically designed for fixed orifice and pressure-compensated operations. This model maintains a consistent flow rate from port 1 to port 2 irrespective of changes in load pressure, making it ideal for applications requiring precise flow management under varying pressure conditions. The reverse flow through this valve returns through the control orifice and is non-compensated. Equipped to handle pressures up to 3500 psi and flow rates ranging from 1.0 to 14.5 gpm, the FR12-20F-0-V-/M35 is versatile in its usage across different hydraulic systems. It operates efficiently within a fluid temperature range of -15°C to +400°C with fluorocarbon seals, ensuring reliability in both low and high temperature environments. The valve's construction includes hardened parts which contribute to its long life and durability, while also providing a quiet and modulated response which enhances overall system stability. This model is designed with a specific cavity (VC122) that fits standard 12-size 2-way cavities, allowing for straightforward installation without orientation restrictions. Its internal wetted surface area measures approximately 25 square inches, with an overall unit weight of 0.56 lbs., making it compact yet robust enough for demanding applications. The FR12-20F-0-V-/M35 also supports various hydraulic fluids including mineral-based or synthetic types with lubricating properties, accommodating a broad viscosity range from 7.4 to 420 cSt. Additional accessories like seal kits (SK122XM115) are available for this model, ensuring easy maintenance and extended operational efficiency. This product does not come with any orientation restrictions regarding installation, offering flexibility in system design configurations.
