FR12-20F-0-N-/ 8.50 FLOW REGULATOR

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

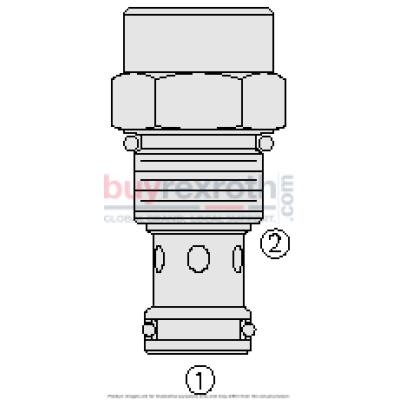

The Hydraforce FR12-20F-0-N-/8.50 (5422300.8.50) is a screw-in, cartridge-style, fixed orifice, pressure compensated hydraulic flow regulator valve of the restrictive type. This model is designed to maintain a constant flow rate from port 1 to port 2 irrespective of load pressure changes, with reverse flow returning through the control orifice in a non-compensated manner. The valve features hardened parts that ensure longevity and durability under varying operational conditions. It offers a quiet and modulated response, which makes it suitable for applications requiring precise control over fluid handling without noise disturbances. The FR12-20F-0-N-/8.50 has a pressure rating of up to 240 bar (3500 psi) and can handle flow rates ranging from 4.0 to 55 lpm (1.0 to 14.5 gpm). It operates efficiently within a fluid temperature range of -40 to +100°C (-40 to +212°F) with Buna N seals, and an extended range up to -26 to +204°C (-15 to +400°F) with fluorocarbon seals. Furthermore, it supports mineral-based or synthetic hydraulic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt and can tolerate maximum operating contamination levels as specified by ISO 4406:18/16/13. This model is lightweight at only 0.25 kg (0.56 lb) and has an internal wetted surface area of approximately 162 cm² (25 in²). Installation specifications include a VC122 cavity requirement and cartridge installation torque between 45 to 50 Nm (33 to 37 ft-lb), with no orientation restrictions during mounting, providing flexibility in system design configurations.
