FR10-20F-0-N-/ D136 FLOW REGULATOR

Manufacturer: Hydraforce

Material #: 5412300D136

Model : FR10-20F-0-N-/ D136 FLOW REGULATOR

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

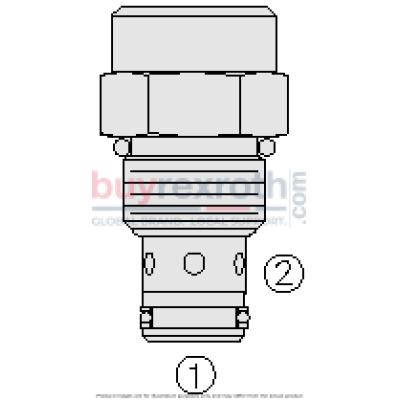

The Hydraforce 5412300.D136 (5412300.D136) is a high-performance hydraulic flow regulator valve, specifically designed as a screw-in, cartridge style model. As a fixed orifice, pressure compensated device, it operates to maintain a consistent flow rate from port 1 to port 2 irrespective of fluctuations in load pressure. The valve's operation allows for reverse flow to return through the control orifice, though this flow is non-compensated. Key features of the 5412300.D136 include hardened parts that ensure durability and longevity, alongside a quiet and modulated response which enhances its operational efficiency. Moreover, it is built to fit an industry-common cavity, facilitating ease of installation and compatibility with existing systems. This valve is particularly suited for applications requiring precise control of hydraulic flow under varying pressure conditions.

Destination

$40.25 USD

Availability: Backordered

Ships from US

Add to Cart

Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.

Qty:
Delivered as early as December 30, 2026

Ratings:	Pressure Ratings Pressure rating: 240 bar (3500 psi) Flow Ratings Flow rating: 0.4 to 22.7 lpm (0.1 to 6.0 gpm) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (model number gfr10-20f)
Operating Parameters:	Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406
Installation Specifications:	Cavity: VC10-2 10-size-2-way Cavities Cartridge installation torque: 34 to 37 N-m (25 to 27 ft-lb) Maximum allowable torque: 68 N-m (50 ft-lb) Orientation restriction: None
Order Code:	POSITION CODE DESCRIPTION FR10-20F-H-J-/T F Adjustment Option F F Factory Preset Non-Adjustable H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane T Flow setting T XX Flow setting

Seal kit: SK10-2X-M
X = seal option
Seal kit installation instructions
Housings:
Available
10-2w valve bodies
