NV08-20B-6T-N NEEDLE VALVE
Manufacturer: Hydraforce
Material #: 5401140
Model : NV08-20B-6T-N NEEDLE VALVE
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

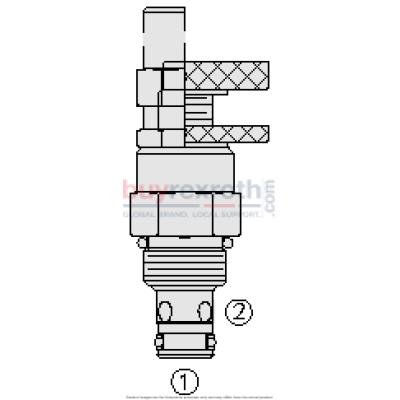

The Hydraforce 5401140 (5401140) is a screw-in, cartridge-style, variable orifice, hydraulic flow restrictor valve designed to efficiently manage the flow of hydraulic fluid within a system. This model operates by increasing its orifice size from fully closed to fully open with a counterclockwise adjustment rotation. One of the key features of the NV0820 valve is that adjustments cannot be backed out of the valve, ensuring stable operation once settings are optimized and locked down. The valve components are hardened for enhanced durability and longevity, contributing to reduced maintenance needs and longer operational life. Additionally, it includes an aluminum knob option for ease of manual adjustments and offers positive shutoff with linear adjustment capabilities. Its compact size facilitates easy integration into various hydraulic systems without requiring significant space modifications.
$76.00 USD
Availability: Backordered
Ships from US Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
Qty:
Delivered as early as January 22, 2027
| Ratings: | Pressure Ratings Pressure rating: 241 bar (3500 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 896 bar (13000 psi) Flow Ratings Flow rating: See pressure drop vs. Flow chart Maximum internal leakage: 0.32 ml/min (5 drops/min) At shut-off Temperature Ratings Operating fluid temperature: -40 to 120 °C (-40 to 250 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (model number gnv08-20xx) |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per iso4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC08-2 08-size-2-way Cavities Cartridge installation torque: 27 N-m (20 ft-lb) Maximum allowable torque: 47.5 N-m (35 ft-lb) Orientation restriction: None |
| Order Code: | POSITION CODE DESCRIPTION NV08-20FG-H-J F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F D 1-1/2" Diameter Aluminum Knob with Lock Nut F E 1-1/2" Diameter Aluminum Knob Only F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes G Screen G BLANK NONE G S 100 Mesh Screen H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane |
