HEP42-S35-0-N-20 CARTRIDGE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

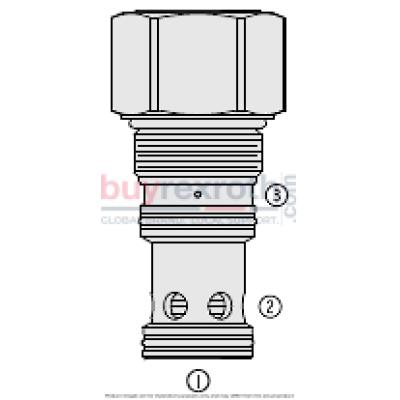

The Hydraforce 5289141N (5289141N) is a robust hydraulic directional element designed for high-pressure applications. This spool type, screw-in, cartridge-style valve excels in controlling flow direction efficiently and effectively. The HEP42S35 model operates as a spring-biased blocking valve, transitioning to allow full flow from port 1 to port 2 when the pressure at port 1 surpasses the combined pressure at port 3 plus the bias spring pressure. This feature makes it a pilot-to-close directional element, which means that with no pressure at port 3, flow from port 1 to port 2 is enabled once the bias spring force is exceeded by the pressure at port 1. The multifunctional nature of this valve allows it to be used in conjunction with other directional, pressure, or flow control devices to achieve desired hydraulic system behaviors. The HEP42S35 model boasts a low-pressure drop across its operation, enhancing system efficiency. Each unit undergoes rigorous testing according to NFPA specification T2.6.1 standards, ensuring reliability and performance with a verification level of 90% and an assurance level of 99%. These features make the Hydraforce 5289141N an excellent choice for varied hydraulic applications requiring precise control and reliability.
