EP20-S35-0-P-160 ELEMENT (PILOTED)
Manufacturer: Hydraforce
Material #: 5287119
Model : EP20-S35-0-P-160 ELEMENT (PILOTED)
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

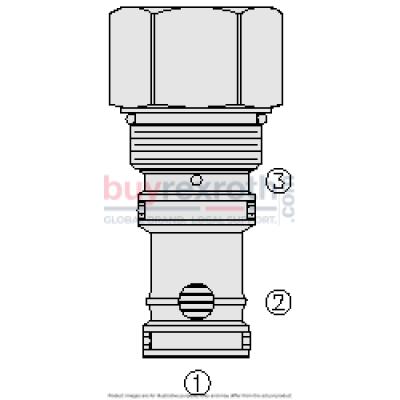

The Hydraforce 5287119 (5287119) is a screw-in, cartridge-style hydraulic directional element known as the EP20S35. This valve operates as a spring-biased blocking valve that transitions to allow full flow from port 1 to port 2 only when the pressure at port 1 exceeds the combined pressure of port 3 and the bias spring pressure. The EP20S35 is designed with multiple function application potential and features a low-pressure drop, making it efficient for various hydraulic systems. Its industry common cavity design ensures compatibility and simplifies installation processes across different applications. This versatility and technical specification make it suitable for a broad range of equipment where precise hydraulic flow control is necessary.
$98.75 USD
Availability: Backordered
Ships from US Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
Qty:
Delivered as early as February 2, 2027
| Ratings: | Pressure Ratings Pressure rating: 345 bar (5000 psi) Flow Ratings Flow rating: See performance graph Maximum internal leakage: 197 ml/min (12 in³/min) At 345 bar (5000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: Gep20-s35 - 960 hour salt spray per ASTM b117 |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC20-S3 20-size-3-way Cavities Cartridge installation torque: 88 to 102 N-m (65 to 75 ft-lb) Orientation restriction: None |
| Order Code: | POSITION CODE DESCRIPTION EP20-S35-H-J-R H Line Body H 0 No Body H 16T Aluminum SAE 16 H 16TD Ductile Iron SAE 16 J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 20 20 psi Bias Spring R 80 80 psi Bias Spring R 160 160 psi Bias Spring |
