EP12-S35-0-N-80 LOGIC ELEMENT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

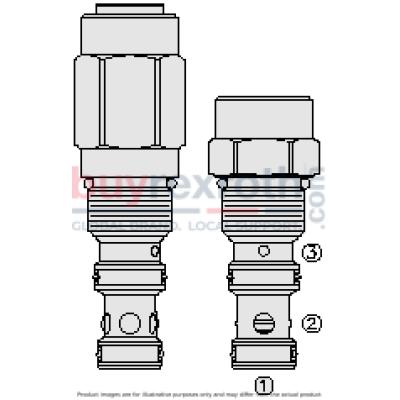

The Hydraforce EP12-S35 (5283056) is a high-performance, screw-in, cartridge-style hydraulic directional element designed for precise fluid control in hydraulic systems. This valve functions as a spring-biased blocking valve that transitions to allow full flow from port 1 to port 2 when the pressure at port 1 surpasses the combined pressure at port 3 and the bias spring pressure, which is set at 80 psi. The EP12-S35 stands out for its multiple application capabilities and low-pressure drop, making it highly versatile across various hydraulic applications. This model is engineered with an industry-common cavity (VC12S3), ensuring compatibility with standard valve installations and simplifying system integration. The manual override option enhances operational flexibility, allowing manual control in situations where automatic control is not feasible. The EP12-S35 operates effectively within a broad temperature range (-40 to +100°C with Buna N seals and up to +204°C with fluorocarbon seals), accommodating diverse environmental conditions and fluid types including mineral-based or synthetic hydraulic fluids. The valve's robust design includes a maximum internal leakage of 131 ml/min at 5000 psi, ensuring efficient performance under high-pressure conditions. It supports a fluid viscosity range from 7.4 to 420 cSt and can handle maximum operating contamination levels as specified by ISO 4406 standards. The unit's weight varies slightly based on specific model configurations but generally remains lightweight, enhancing its applicability in various setups without adding significant bulk. Overall, the Hydraforce EP12-S35 offers reliable performance for controlling fluid direction in hydraulic systems, marked by its adaptability to different pressures, temperatures, and environmental conditions. Its design emphasizes durability, ease of maintenance with available seal kits like SK12S3XMM for different seal options, and operational reliability even in demanding applications.
