PD10-40NT-0-V-M14.0 PILOTED 3-WAY

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

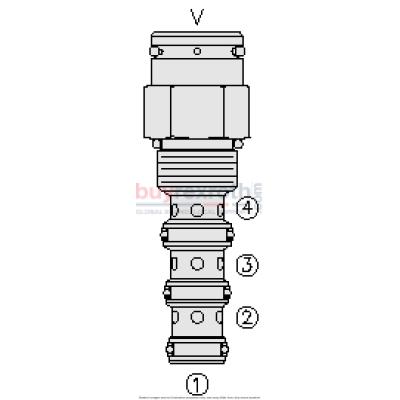

The Hydraforce 5266015 (5266015) is a high-performance hydraulic directional valve designed for robust and efficient operation in demanding applications. The pd1040xx model is a screw-in, cartridge style valve that features a pilot-operated, spool-type mechanism. In its neutral position, this valve facilitates bidirectional flow from port 3 to port 2, while completely blocking port 4. The design includes a spring chamber that is vented to the atmosphere and internally O-ring sealed to prevent leakage between the cartridge flow paths. Upon receiving a remote pilot signal at port 1, the spool of the valve shifts to connect port 3 to port 4, concurrently blocking port 2. This functional versatility allows for precise control of hydraulic flow in various configurations, making it suitable for a wide range of operational setups. The vented spring chamber feature ensures that the cartridge can be fully pressurized at any port without influencing the required pilot pressure. Additionally, the pd1040xx model boasts a hardened spool and cage which significantly enhances its durability and extends its operational life under continuous use conditions. Its industry common cavity design also allows for easier installation and compatibility with existing systems without requiring extensive modifications. This combination of features makes the Hydraforce 5266015 an ideal choice for applications requiring reliable directional control of hydraulic fluids under varied pressure conditions.
