PD12-S61N-0-NS-170 CARTRIDGE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

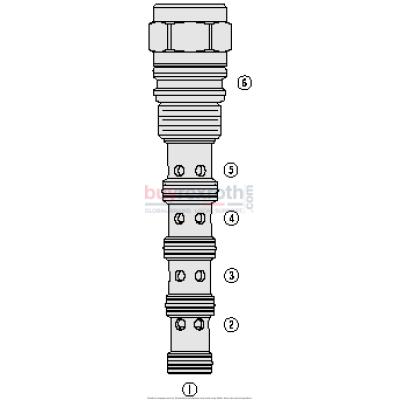

The Hydraforce 5265882 (5265882) is a precision-engineered hydraulic directional valve, specifically designed for robust performance in a variety of applications. Known as the PD12S61N, this valve operates as a screw-in, cartridge style unit that utilizes a pilot-operated, spool-type mechanism to manage fluid direction effectively. In its neutral state, the valve permits flow between ports 2 and 3, as well as between ports 4 and 5. Activation occurs through a remote pilot signal at port 1, which shifts the spool to enable flow between ports 3 and 4 while simultaneously blocking ports 2 and 5. One of the standout features of this model is its vented spring chamber connected to port 6, which significantly enhances operational efficiency. This design ensures that the spring chamber's venting to the tank does not influence the pilot pressure required for operation, despite full pressurization at ports 1 through 5. The performance of the valve is further optimized by its construction; it boasts a hardened spool and cage that promise extended durability and reliability under various conditions. Additionally, the PD12S61N offers flexibility in terms of customization with available bias springs at pressures of both 110 psi and 170 psi. This feature allows users to tailor the valve’s operation according to specific system requirements, enhancing its utility across different hydraulic setups. Ideal for applications requiring precise control over fluid dynamics within hydraulic systems, this directional valve by Hydraforce stands out for its reliability and customizable capabilities.
