PD12-30-0-NS-110 PILOTED 2-WAY

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

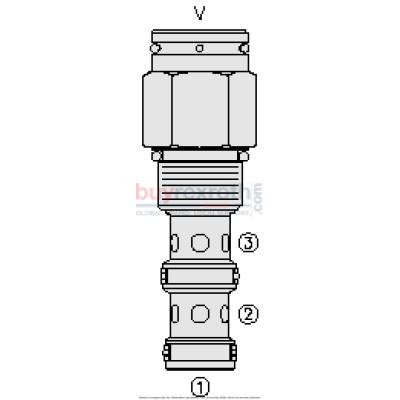

The Hydraforce 5265103 (5265103) is a high-performance hydraulic directional valve, distinguished by its PD1230 model designation. This screw-in, cartridge-style valve operates as a pilot-operated, spool type, normally open device. It is crafted to facilitate bidirectional flow from port 3 to port 2 in its neutral position, making it versatile for various hydraulic applications. The design includes a vented spring chamber which is atmospherically exposed yet internally o-ring sealed to prevent leakage between the cartridge flow paths. Upon receiving a remote pilot signal at port 1, the PD1230's spool shifts efficiently to block the flow between ports 3 and 2 while simultaneously blocking port 2. This feature allows the valve to be fully pressurized at any port without influencing the required pilot pressure, enhancing its reliability and performance in demanding settings. Additionally, the valve incorporates a hardened spool and cage which ensures long life and durability even under harsh operating conditions. Its cost-effective cavity design further adds to its appeal by providing an economical solution without compromising on quality or performance. This makes the PD1230 an ideal choice for systems requiring robust control with dependable directional capabilities in hydraulic circuits.
