PD10-35-6T-NS-110 PILOTED 2-WAY

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

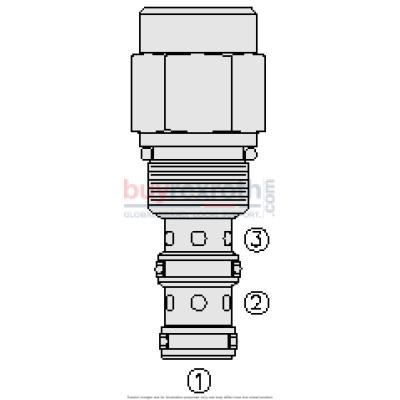

The Hydraforce 5262342 (5262342) is a high-performance hydraulic directional valve, specifically the PD1035 model. This valve is a screw-in, cartridge-style component that functions as a pilot-operated, spool type, normally open directional control valve. Designed to facilitate efficient hydraulic operations, the PD1035 allows for flow from port 2 to port 3 in its neutral position while the spring chamber remains vented to port 3. A notable feature of this valve is its response to remote pilot signals at port 1, which cause the spool to shift and block flow between ports 2 and 3. The operational dynamics of the PD1035 are such that pressure on port 3 influences the pilot pressure required, with a direct 1:1 ratio that must be considered in addition to the bias spring value. This model boasts several key features enhancing its functionality and durability: an external vent-to-atmosphere design, availability of a range of bias springs, and an option for a sealed spool to accommodate specific bias spring options (110, 130, and 170). The hardened spool and cage ensure long-lasting performance. Additionally, its design conforms to industry-common cavity specifications, making it compatible with a wide range of systems and ensuring easy integration or replacement within existing hydraulic setups.
