PE16-S67C-0-N PROPORTIONAL ELEMENT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

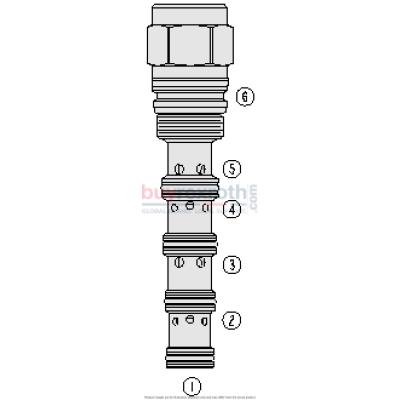

The Hydraforce PE16-S67C (5262130) is a screw-in, cartridge-style, proportional, spring-centered spool, pilot-operated hydraulic directional valve designed for robust and precise control in hydraulic systems. This valve operates by blocking all ports in its neutral position. Upon receiving a remote pilot signal at port 1, the spool shifts proportionally to the applied pilot pressure, enabling flow from port 3 to port 4 through a load such as a hydraulic cylinder or motor. It then allows flow from port 2 to port 5 and back to the tank. Conversely, with a remote pilot signal at port 6, the spool moves in the opposite direction under proportional pressure control, reversing the flow direction. The PE16-S67C is built with a hardened spool and cage to ensure longevity and durability even under rigorous conditions. Its symmetrical spool design provides meter-in and meter-out control that enhances performance through excellent metering characteristics and good linearity. The valve's cost-effective cavity design also adds value by reducing overall system costs while maintaining high quality. This model supports various pressure ratings: 345 bar (5000 psi) at port 3 and 241 bar (3500 psi) at ports 2 and 4, with lower pressures of 27.6 bar (400 psi) managed at ports 1 and 6. It accommodates fluid temperatures ranging from -40 to +100°C (-40 to +212°F) with Buna N seals, -26 to +204°C (-15 to +400°F) with Viton seals, and -54 to +107°C (-65 to +225°F) with polyurethane seals. The valve's operational versatility is further enhanced by its compatibility with mineral-based or synthetic hydraulic fluids within a viscosity range of 7.4 to 420 cSt. The PE16-S67C also features an internal wetted surface area of approximately 585 cm² (90.7 in²), weighs about 0.77 kg (1.7 lb), and can be installed into VC16S6 cavities without orientation restrictions—a testament to its flexible installation capabilities.
