PD10-50-0-VS-230 PILOTED 4-WAY

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

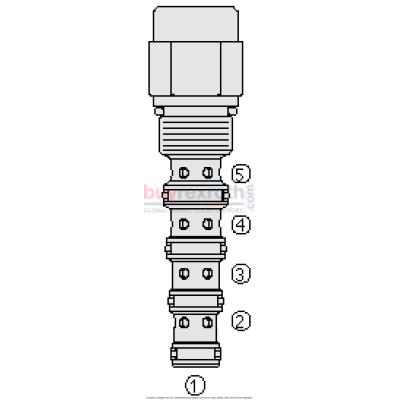

The Hydraforce 5262032V (5262032V) is a high-performance hydraulic directional valve, specifically designed for robust and efficient control in hydraulic systems. The PD1050 model is a screw-in, cartridge-style valve that operates as a pilot-operated, spool-type directional control valve. In its neutral position, the valve facilitates flow between ports 2 and 3 while blocking flow at port 4. Upon receiving a remote pilot signal at port 1, the valve transitions, allowing flow between ports 3 and 4 and simultaneously blocking flow at port 2. This dynamic shifting capability enhances the versatility of the valve in various hydraulic applications. One of the standout features of this model is its vented spring chamber connected to port 5, which permits the spring chamber to be vented to the tank. This design feature ensures that full pressurization at ports 1, 2, 3, and 4 does not interfere with the required pilot pressure, although pressure at port 5 can influence it. Additionally, the PD1050 boasts a hardened spool and cage which significantly extends its operational life even under rigorous conditions. The use of an industry-common cavity further ensures that this valve can be integrated or replaced in multiple system configurations without requiring specialized adaptations. This combination of features makes the Hydraforce 5262032V particularly suitable for applications requiring reliable directional control of fluid within a hydraulic system while maintaining stability and pressure management across various operational states.
