DCV08-6T-N-60 LOCK VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

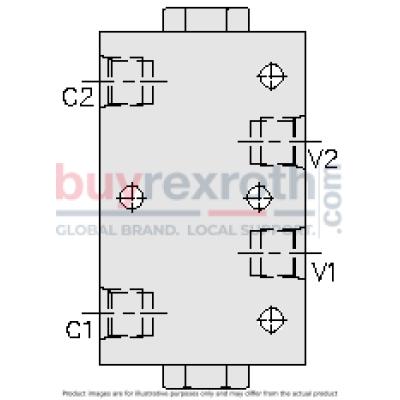

The Hydraforce 5230245 (5230245) is a DCV08 model double pilot operated, hydraulic check valve designed for blocking or load holding circuits. This valve facilitates the flow from V ports to C ports while typically blocking the flow in the reverse direction. It allows flow from C to V when pressure is applied to the opposite side V port, incorporating a 4:1 pilot ratio. This means that at least 25% of the load pressure held at either C port is necessary at the opposite V port to open the flow passage. The DCV08 valve features a hardened seat which ensures long life and minimal leakage, enhancing its reliability and efficiency in various applications. It offers optional configurations like a sealed piston and different spring ranges, allowing customization to meet specific system requirements. Additionally, it is designed with a low pressure drop and a check section that can be serviced as a cartridge, ensuring ease of maintenance and operational flexibility. This combination of features makes the Hydraforce 5230245 an effective solution for sophisticated hydraulic systems requiring precise control over fluid handling and direction.
