DC10-40T-0-N-115 DUAL CHECK W/ TR

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

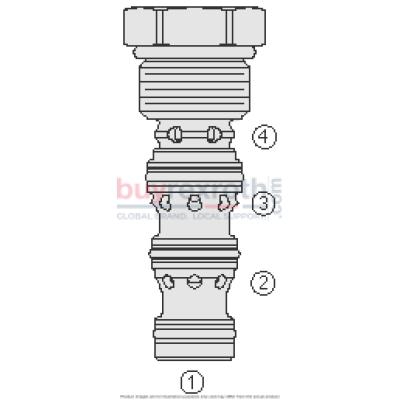

The Hydraforce DC10-40T-0-N-115 (5230037) is a dual pilot operated check valve designed for use in hydraulic systems where blocking or load holding is required. This cartridge-style valve is optimized for general-purpose hydraulic fluids and features a hardened seat that ensures long life and minimal leakage. With a low pressure drop and the ability to handle pressures up to 241 bar (3500 psi), it provides reliable performance under rigorous conditions. The DC10-40T-0-N-115 offers optional thermal relief from port 4 to 3, with thermal relief crack pressures ranging from 310 to 386 bar (4500 to 5600 psi). Its pilot ratio of 3:1 allows for precise control, making it suitable for various hydraulic applications. The valve supports flow rates of up to 60.6 lpm (16 gpm) and maintains very low internal leakage levels, crucial for maintaining system efficiency. Temperature versatility is another key feature of this model, with operating fluid temperatures supported from -40°C to +100°C (-40°F to +212°F) when equipped with Buna N seals, and even wider ranges with alternative seal materials like fluorocarbon or polyurethane. The unit’s robust construction includes corrosion protection that meets the ASTM B117 standard for a 960-hour salt spray test, ensuring durability in harsh environments. This model does not restrict installation orientation and can be integrated into various system configurations using VC104 cavities. It also allows for easy maintenance with available seal kits in different materials to match application needs. Overall, the Hydraforce DC10-40T-0-N-115 offers a combination of durability, flexibility, and performance for demanding hydraulic applications.
