PC08-30-0-N-270
Manufacturer: Hydraforce
Material #: 5225001
Model : PC08-30-0-N-270
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

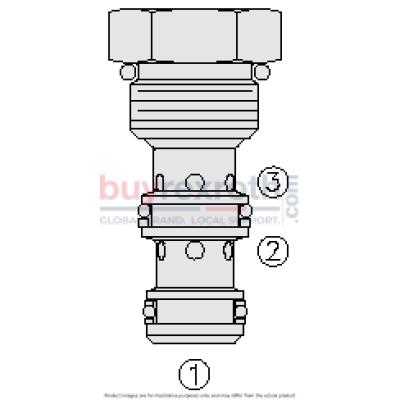

The Hydraforce 5225001 (5225001) is a screw-in, cartridge-style, pilot-operated hydraulic check valve designed primarily for blocking or load holding circuits in hydraulic systems. This model allows free flow from port 2 to port 3 and normally blocks flow from port 3 to port 2. Flow can be enabled from port 3 to port 2 when pressure is applied at port 1, providing versatile control based on system pressure changes. The PC0830 features a hardened seat to ensure durability and maintain low leakage over the lifespan of the valve. It also offers optional configurations including a sealed piston and various spring ranges, which enhance its adaptability to different hydraulic applications. The compact size of the PC0830 makes it an ideal choice for systems where space is at a premium but robust performance is still required.
$31.00 USD
Availability: Backordered
Ships from US Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
Qty:
Delivered as early as March 5, 2027
| Ratings: | Pressure Ratings Pressure rating: 241 bar (3500 psi) Flow Ratings Flow rating: See performance chart Maximum internal leakage: 0.1 ml/min (2 drops/min) Between ports 3 and 2 115 ml/min (7 in³/min) Between ports 2 and 1 0 ml/min (0 drops/min) Between ports 2 and 1 with sealed piston Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With viton seals -54 to 107 °C (-65 to 225 °F) With urethane seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC08-3 08-size-3-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Orientation restriction: None |
| Order Code: | POSITION CODE DESCRIPTION PC08-30-H-J-R H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J NS Buna-N with a Sealed Spool J V Fluorocarbon J VS Fluorocarbon with a Sealed Spool J P Polyurethane J PS Polyurethane with a Sealed Spool J U PPDI Urethane J US PPDI Urethane with a Sealed Spool R Spring R 70 70 psi Bias Spring R 90 90 psi Bias Spring R 120 120 psi Bias Spring R 270 270 psi Bias Spring R BLANK 25 psi Bias Spring |
