PC10-30-6T-NS-90 P.O. CHECK VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

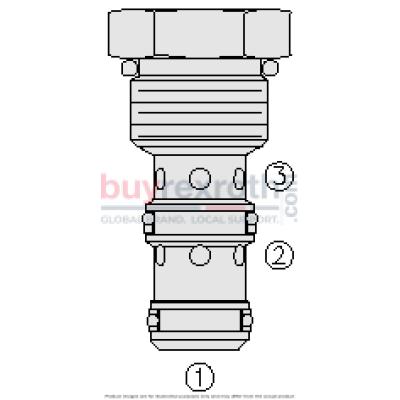

The Hydraforce 5221061 (5221061) is a high-performance hydraulic check valve, specifically designed for robust fluid control in hydraulic systems. Known as the PC1030, this screw-in, cartridge-style valve operates as a pilot-operated check valve. It facilitates free flow from ports 2 to 3 and normally blocks flow in the reverse direction from ports 3 to 2. However, flow can be enabled from ports 3 to 2 by applying pressure at port 1, leveraging a pilot ratio of 4 to 1. This model is engineered with a hardened seat to ensure long service life and minimal leakage, enhancing system reliability. The PC1030 also offers versatility with optional features such as a sealed piston and various spring ranges, allowing customization to meet specific application requirements. Its design conforms to industry-common cavity specifications, ensuring compatibility and ease of integration into existing hydraulic systems. This valve is ideal for applications requiring reliable unidirectional flow control in hydraulic circuits.
