CV10-24-0-N-55 CHECK VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

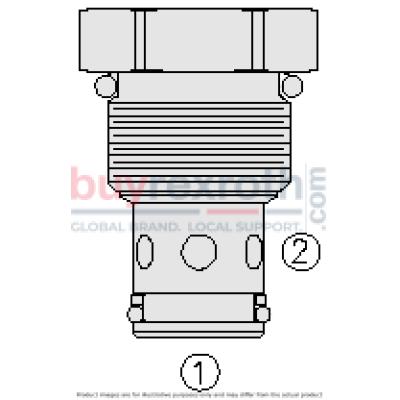

The Hydraforce 5214004 (5214004) is a screw-in, cartridge-style hydraulic check valve designed primarily for blocking or load-holding applications. This model, known as the CV1024X, facilitates hydraulic flow from port 2 to port 1 while normally preventing flow in the reverse direction. The valve features a fully guided check mechanism that is spring-biased closed. It only opens when sufficient pressure is applied at port 2, allowing fluid to pass through to port 1. Notably, the CV1024X includes a hardened seat which enhances its durability and minimizes leakage, extending the valve's operational life span. Additionally, it offers optional bias springs which provide flexibility for backpressure applications, making it adaptable for various hydraulic system requirements. The low mass of the check component also helps in reducing cavitation risks, which is particularly beneficial in systems where rapid pressure changes might occur. Moreover, the CV1024X is designed with an industry-common cavity which ensures compatibility with standard configurations and simplifies installation processes. This feature makes it a versatile choice for integrating into diverse hydraulic systems without requiring specialized accommodations. The combination of robust construction and flexible design options makes this Hydraforce check valve a reliable solution for ensuring efficient and secure hydraulic operations across multiple application settings.
