CV16-20-0-N-25 CHECK VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

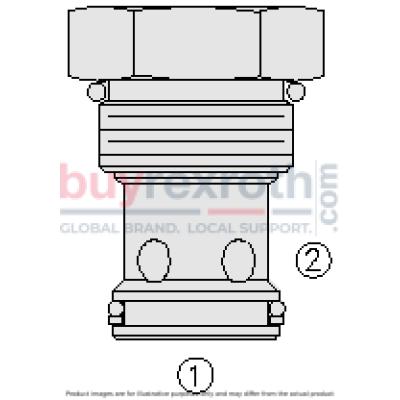

The Hydraforce CV16-20-0-N-25 (5203200) is a screw-in, cartridge-style hydraulic check valve designed for use as a blocking or load-holding device in hydraulic systems. This model facilitates the flow of fluid from port 1 to port 2, while effectively blocking flow in the reverse direction unless sufficient pressure is applied at port 1. It features a fully guided poppet that remains spring-biased closed until activated by the required pressure. The valve boasts a hardened seat which ensures long life and minimal leakage. The CV16-20-0-N-25 is capable of handling up to 40 gallons per minute with a pressure rating of up to 3500 psi, and it accommodates various bias springs to suit different backpressure applications. The valve operates efficiently within a fluid temperature range from -40°C to +100°C with Buna N seals, and up to +204°C with Viton seals, making it versatile for different operating environments. It also supports a wide range of fluid viscosities from 7.4 to 420 cSt. This model's design complies with industry-common cavity specifications for easy integration into existing systems without the need for additional modifications. The unit's weight varies depending on the adapter configuration, reflecting its adaptability to specific application requirements involving different spring pressures. Overall, the Hydraforce CV16-20-0-N-25 offers robust performance and reliability for hydraulic system applications requiring precise flow control and load holding capabilities.
