CV12-20-12T-V-30 CHECK VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

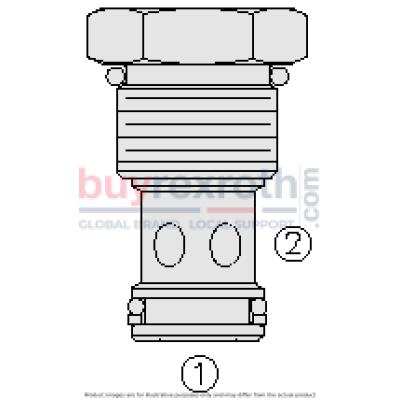

The Hydraforce 5202182 (5202182) is a high-quality hydraulic check valve, designed for use as a blocking or load-holding device within various hydraulic systems. Specifically, the CV1220 model is a screw-in, cartridge style valve that facilitates the flow of oil from port 1 to port 2 while normally preventing flow in the reverse direction. This functionality is critical in applications requiring one-way flow to maintain system pressures and prevent potential damage caused by backflow. The valve features a fully guided check assembly which is spring-biased closed. This design ensures that the check remains shut until sufficient pressure at port 1 compels it to open towards port 2, thereby allowing fluid passage. The hardened seat within the CV1220 enhances its durability and significantly reduces the risk of leakage, thereby ensuring long life and reliability under varying operational conditions. Moreover, the CV1220 includes optional bias springs which provide additional flexibility for backpressure applications, making it adaptable to a broader range of hydraulic system requirements. Its cost-effective cavity design also contributes to overall system efficiency by minimizing installation space and reducing material costs without compromising performance. This combination of features makes the Hydraforce CV1220 an essential component in creating efficient and reliable hydraulic circuits across multiple applications.
