CV10-28-0-N-65/45 THERMAL RELIEF

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

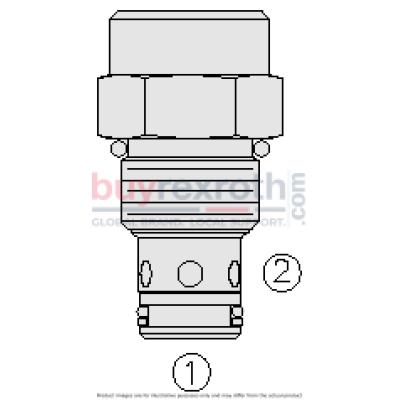

The Hydraforce CV10-28-0-N-65/45 (5201900) is a screw-in, cartridge-style hydraulic check valve designed for use as a blocking or load-holding device in hydraulic systems. The valve is engineered to allow flow from port 1 to port 2 while blocking oil flow in the opposite direction, ensuring efficient operation and system safety. A key feature of this model is its low-flow thermal relief valve, which activates if the pressure at port 2 exceeds the thermal relief setting. This function allows a small amount of oil to pass back to port 1, preventing potential cylinder damage due to temperature-induced pressure intensification. Constructed with a hardened seat, the CV10-28-0-N-65/45 offers long life and minimal leakage, making it a reliable component for various hydraulic applications. It operates effectively within a pressure rating of up to 241 bar (3500 psi) and a proof pressure of 390 bar (5700 psi). The valve supports a maximum flow rate of 45 lpm (12 gpm) and exhibits maximum internal leakage of only 0.25 ml/min at full pressure, underscoring its precision and quality. Temperature handling capabilities are robust, with operational fluid temperatures ranging from -40°C to +100°C with Buna N seals, -26°C to +204°C with Viton seals, and -54°C to +107°C with polyurethane seals. The CV10-28-0-N-65/45 is compatible with mineral-based or synthetic hydraulic fluids and can handle fluid viscosities from 7.4 to 420 cSt. This model fits industry-common cavity VC102 and does not have orientation restrictions during installation. Accessories like seal kits (SK102XT) and housing options for valve bodies enhance its adaptability and ease of use in various setups.
