CV10-20-4B-N-30 CHECK VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

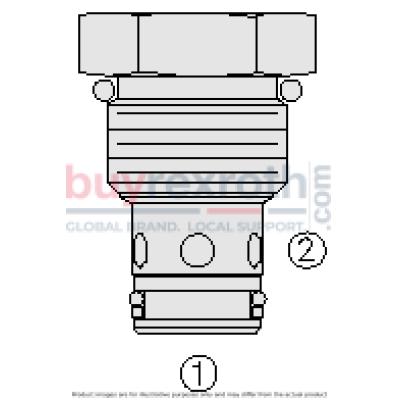

The Hydraforce 5201664 (5201664) is a high-performance hydraulic check valve designed for use as a blocking or load-holding device in various hydraulic systems. Known by its model code CV1020X, this valve operates efficiently by allowing flow from port 1 to port 2, while typically preventing flow in the reverse direction. This functionality is achieved through a fully guided check mechanism, which remains spring-biased closed until sufficient pressure at port 1 compels it to open towards port 2. Engineered for durability and reliability, the CV1020X features a hardened seat that ensures extended life and minimal leakage, making it an ideal choice for rigorous industrial applications. The valve also offers optional bias springs to accommodate backpressure applications, providing additional flexibility. For those requiring enhanced performance under higher pressures, a 300 psi bias spring option with a tall cap is available. This model leverages an industry-common cavity design that simplifies installation and maintenance while ensuring compatibility with standard configurations. The robust construction and thoughtful design of the CV1020X make it a versatile solution suitable for a wide range of hydraulic applications where dependable load holding and flow regulation are necessary.
