CV10-20-0-P-30 CHECK VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

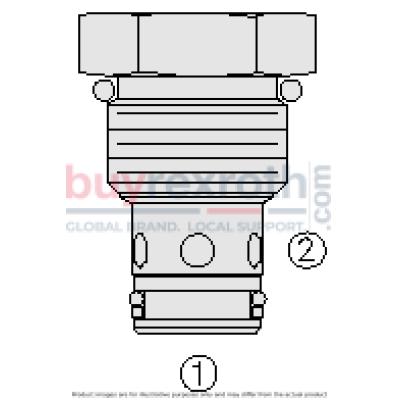

The Hydraforce 5201503 (5201503) is a high-performance hydraulic check valve, specifically designed for use as a blocking or load-holding device in various hydraulic systems. Known by its model code CV1020X, this valve features a screw-in, cartridge style that facilitates easy installation and maintenance. The operation of the CV1020X is straightforward; it allows fluid to flow seamlessly from port 1 to port 2 and blocks the flow in the opposite direction under normal conditions. This functionality is achieved through a fully guided check mechanism which remains spring-biased closed until enough pressure is exerted at port 1 to compel opening towards port 2. Key features of the CV1020X include a hardened seat which ensures longevity and minimal leakage, enhancing the overall efficiency of the system it is integrated into. The valve also offers optional bias springs, providing flexibility for backpressure applications—a notable option being the 300 psi bias spring with a tall cap. These attributes make the CV1020X adaptable to a variety of settings requiring precise hydraulic flow control. Furthermore, its design conforms to industry-common cavity specifications, ensuring compatibility with standard hydraulic systems and simplifying integration processes.
