CV10-20-0-P-40 CHECK VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

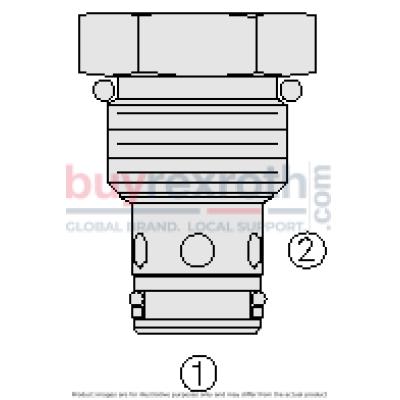

The Hydraforce 5201402 (5201402) is a high-performance CV1020X hydraulic check valve, designed as a screw-in, cartridge-style component. This valve is primarily utilized as a blocking or load-holding device within hydraulic systems. It operates by allowing fluid flow from port 1 to port 2, while normally preventing flow in the reverse direction. This functionality is achieved through a fully guided check mechanism that remains spring-biased closed until sufficient pressure at port 1 compels it to open towards port 2. The CV1020X features a hardened seat which ensures long life and minimal leakage, making it a reliable choice for demanding applications. It also offers optional bias springs to enhance backpressure application flexibility, including a 300 psi bias spring option accompanied by a tall cap for specific operational needs. The design incorporates an industry-common cavity which facilitates compatibility and interchangeability with various systems. This valve is engineered to provide efficient and dependable performance in controlling fluid flow in hydraulic circuits, thereby supporting machinery operations across diverse sectors.
