CV10-20-0-HV-05 CHECK VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

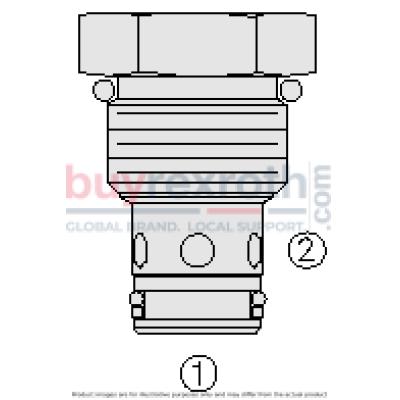

The Hydraforce 5201101HV (5201101HV) is a high-performance hydraulic check valve, designed primarily for use as a blocking or load-holding device in various hydraulic systems. The CV1020X model, crafted as a screw-in, cartridge-style valve, facilitates the flow of hydraulic fluid from port 1 to port 2. It effectively blocks the flow in the reverse direction under normal conditions. This functionality is achieved through a fully guided check mechanism that remains spring-biased closed until enough pressure is exerted at port 1 to permit flow towards port 2. Constructed with a hardened seat, the 5201101HV ensures extended service life and minimal leakage, making it an ideal choice for demanding applications requiring robust performance and reliability. The valve also features optional bias springs which provide additional backpressure application flexibility, enhancing its usability across different hydraulic setups. Moreover, a specific 300 psi bias spring option is available with a tall cap to accommodate varying system requirements. This model boasts an industry-common cavity design that simplifies installation and maintenance processes while ensuring compatibility with standard components in hydraulic systems. The fully guided check assembly not only contributes to the valve’s efficient operation but also supports its consistent performance under varying operational conditions. This combination of features makes the Hydraforce 5201101HV an essential component for engineers looking to optimize their hydraulic systems for better control and efficiency.
