CV10-20-8T-N-02 CHECK VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

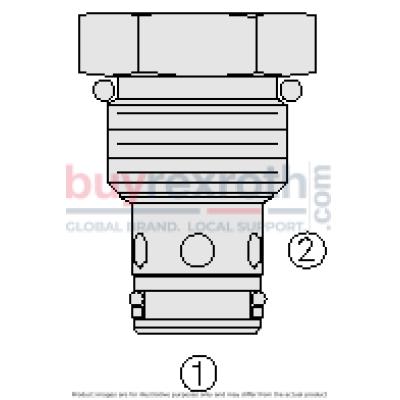

The Hydraforce CV10-20-8T-N-02 (5201070) is a screw-in, cartridge-style hydraulic check valve designed for use as a blocking or load-holding device in hydraulic systems. It facilitates flow from port 1 to port 2 while normally blocking flow in the opposite direction. This model features a fully guided check assembly that is spring-biased closed, requiring sufficient pressure at port 1 to open towards port 2. The valve is engineered with a hardened seat to ensure long life and minimal leakage. The CV10-20-8T-N-02 offers flexibility in backpressure applications through optional bias springs, including a 300 psi bias spring option accompanied by a tall cap configuration for enhanced performance needs. It supports a maximum flow rate of 75.8 liters per minute (20 gallons per minute) and has an impressive pressure rating of up to 240 bar (3500 psi), with proof pressure reaching up to 350 bar (5075 psi). Temperature adaptability is broad, with operating fluid temperatures ranging from -40°C to +100°C (-40°F to +212°F) when equipped with standard Buna N seals, and up to +204°C (400°F) with fluorocarbon seals. This versatility makes it suitable for varied environmental conditions and operational demands. The CV10-20-8T-N-02's design includes industry-common cavity VC102, allowing for straightforward integration into existing hydraulic systems without extensive modifications. Its robust construction includes corrosion protection that meets the Gcv1020 - 960-hour salt spray per ASTM B117 standard, ensuring durability and reliability in harsh environments. This check valve is ideal for applications requiring reliable load holding or blocking in hydraulic circuits, providing both high performance and adaptability in a compact package designed for easy installation and maintenance.
