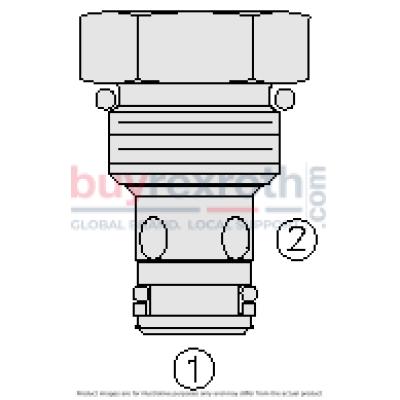

The Hydraforce CV08-20-0-N-100 (5200700) is a screw-in, cartridge-style hydraulic check valve designed primarily for blocking or load-holding applications. This model allows hydraulic fluid to flow from port 1 to port 2 while normally blocking flow in the reverse direction. It features a fully guided check assembly that is spring-biased closed, opening only when sufficient pressure is applied at port 1. The valve boasts a hardened seat to ensure long life and minimal leakage and offers optional bias springs to enhance backpressure application flexibility. The compact size of the CV08-20-0-N-100 makes it ideal for various hydraulic systems where space and quick response are critical. Its fast closing and seating response prevent potential system shocks and damages. Rated for pressures up to 3500 psi with a proof pressure of 5075 psi and a burst pressure of 15000 psi, this valve is built for durability and reliability under high-pressure conditions. This check valve operates effectively within a temperature range of -40°C to +100°C with standard Buna N seals, but can handle temperatures from -26°C up to +204°C with fluorocarbon seals, making it versatile across different operating environments. The CV08-20-0-N-100 is suitable for use with mineral-based or synthetic hydraulic fluids with lubricating properties, supporting a wide viscosity range from 7.4 to 420 cSt. For installation, the CV08-20-0-N-100 fits into an 08-size 2-way cavity (VC082) and does not have orientation restrictions during installation, simplifying the integration process into existing systems. It also supports various seal kit options including Buna N, Fluorocarbon, Polyurethane, and Urethane configurations ensuring compatibility with different fluid types and operational requirements.
