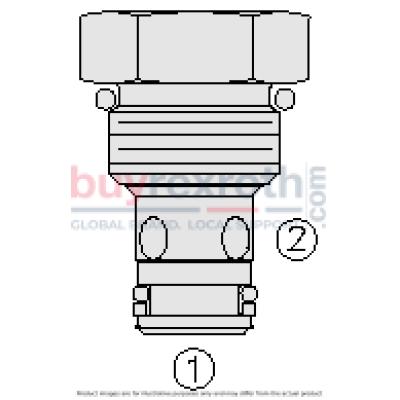

The Hydraforce CV08-20-6T-N-10 (5200250) is a high-performance, screw-in, cartridge-style hydraulic check valve designed primarily for use as a blocking or load-holding device in various hydraulic systems. The valve facilitates flow from port 1 to port 2 while typically blocking flow in the reverse direction. This functionality is achieved through a fully guided check mechanism that remains spring-biased closed until sufficient pressure at port 1 compels it to open towards port 2. Key features of the CV08-20-6T-N-10 include a hardened seat that ensures longevity and minimal leakage, optional bias springs that enhance backpressure application flexibility, and a compact design that allows for easy integration into various setups without requiring excessive space. The valve exhibits rapid closing and seating times, improving the responsiveness and efficiency of the system. The valve boasts robust pressure ratings, with a standard pressure rating of up to 3500 psi, proof pressure reaching 5075 psi, and an impressive burst pressure limit of 15000 psi. It operates effectively within a fluid temperature range of -40°C to +100°C with Buna N seals, which can be extended with alternative seal materials like fluorocarbon or polyurethane for more extreme temperatures. Additional specifications highlight its adaptability to different hydraulic fluids including mineral-based or synthetic types with lubricating properties across a viscosity range of 7.4 to 420 cSt. This model maintains excellent performance even under maximum operating contamination levels specified by ISO standards. For installation ease, the CV08-20-6T-N-10 fits into VC082 cavities and does not have orientation restrictions during installation. Available accessories include various seal kits like SK082NT (Buna N), SK082VT (Fluorocarbon), and others tailored to specific operational needs and environments. This valve is ideal for applications requiring reliable load holding and flow blocking capabilities within compact hydraulic systems.
